Installing LATCH or ISOFIX Child Seats

Warning: Child seat anchorages are designed only to withstand the loads imposed by a correctly installed child safety seat. Under no circumstances are they to be used for adult seat belts, harnesses, or attaching other items or equipment to the vehicle.
Warning: Never attach two child safety seats to one anchor point. In a collision, one anchor point may be incapable of securing both seats.
Warning: If the restraint is not correctly anchored, there is a risk of serious injury to the child in the event of a collision or emergency braking.

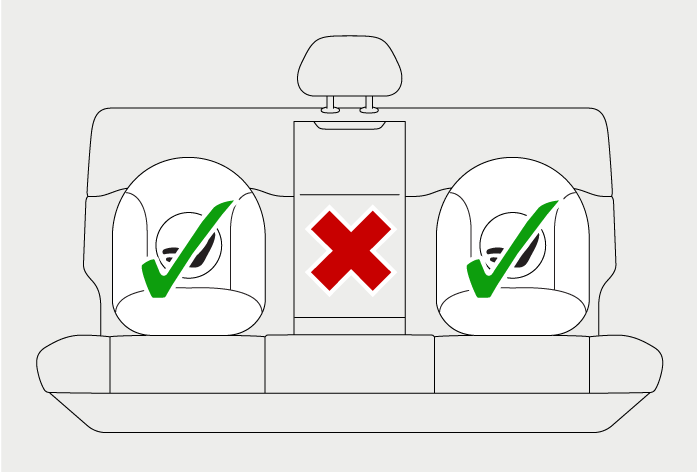

The outer rear seats are equipped to accept LATCH/ISOFIX restraints.

Note: Only a seat belt retained child seat can be used in the center rear seating position.

To install a LATCH/ISOFIX child seat:

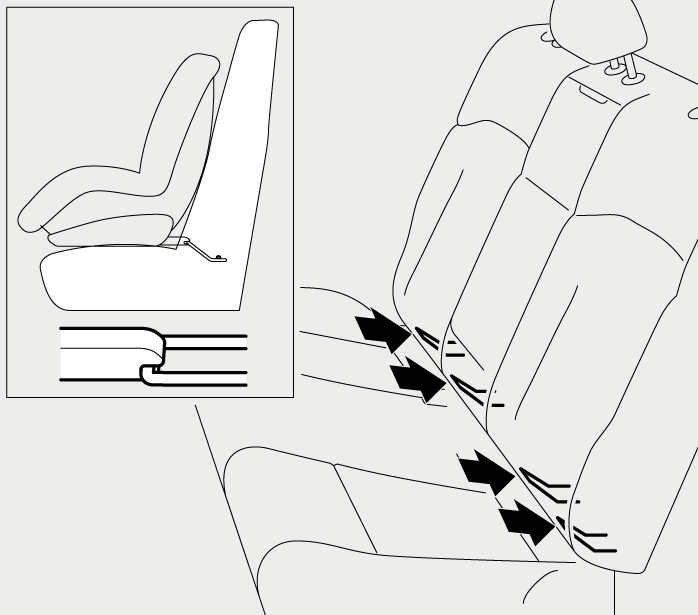

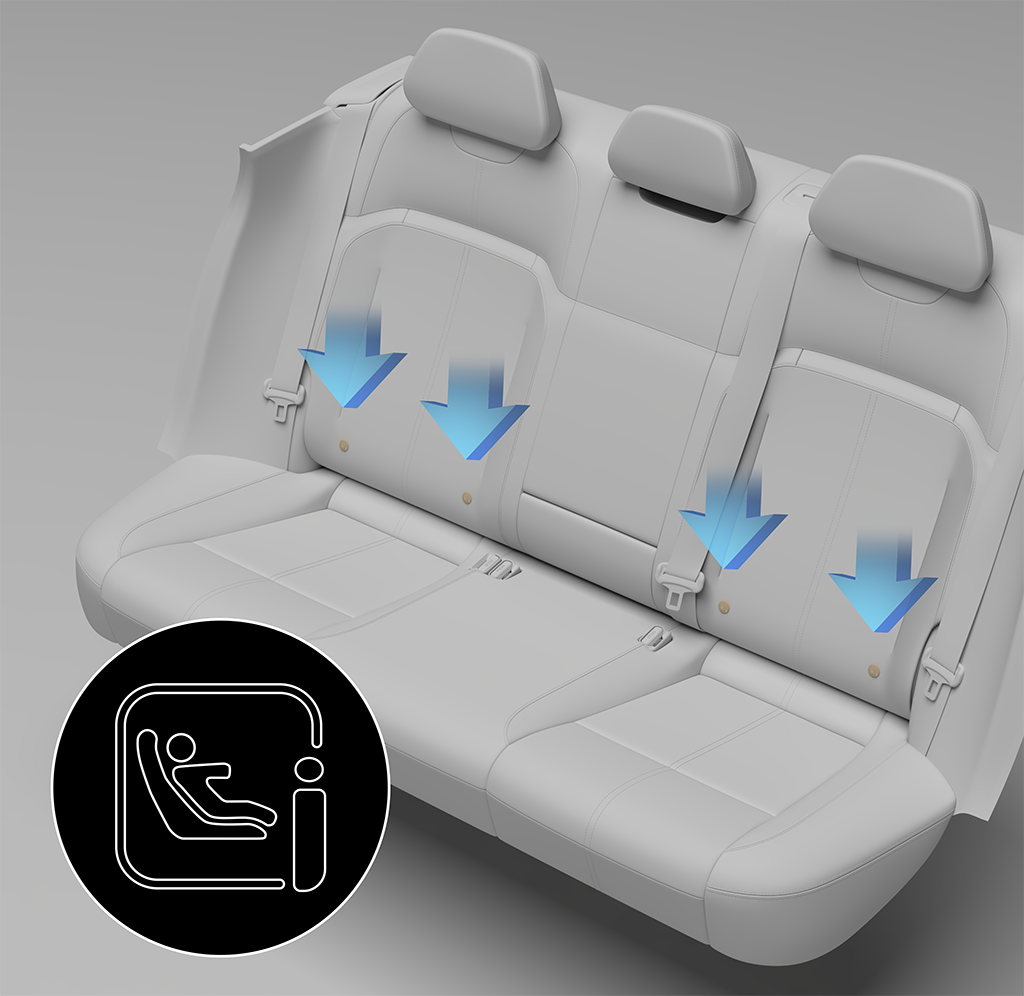

  1. The lower LATCH/ISOFIX anchorage points are located between the seat back rest and rear cushion, indicated by child seat identification tabs on the seat.


  2. Position the child seat on the vehicle seat.
  3. Attach the child seat latches onto the LATCH/ISOFIX lower anchor points, following the manufacturer’s instructions to connect and tighten them.


  4. Securely connect and tighten the latches. To do this, attempt to pull the child seat away from the vehicle seat and twist it from side to side. Even if the child seat appears secure, check the anchor points visually to make sure for correct attachment.

    If the child seat moves more than 1 inch (2.5 cm) from side to side or front to back, it is too loose. If you cannot tighten the latches any further, try a different recommended seating location or another child safety seat.

  5. If the child seat has an upper tether provided, fit and tighten the upper tether correctly. See Attaching Upper Tether Straps.
Warning: When the combined weight of the child plus the child restraint is more than 64 lb (29 kg), you should not use the lower LATCH/ISOFIX anchors with the child seats or booster seats that have an integrated safety belt. Use the seat belt instead.
