USB-C ports for charging mobile devices while the vehicle is on are located in the
front and rear seats of the Lucid Gravity.
USB-C ports are in the following areas:

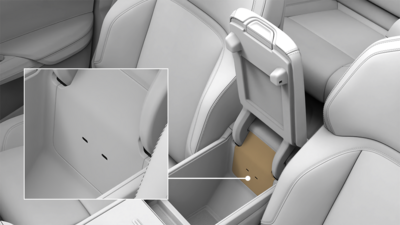

Two USB-C ports are in the
storage compartment of the front center console. These ports can power
appliances up to 100W.

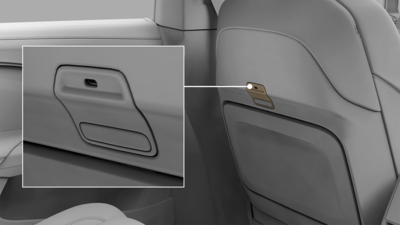

Two USB-C ports are on the back
of the driver and front passenger seats. These ports can power appliances up to
45W.

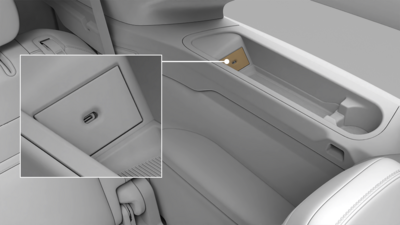

In equipped vehicles, two USB-C
ports are on the right and left armrests in the third row. These ports can power
appliances up to 45W.
Note: Connecting multiple devices to the
USB ports using a USB hub may result in sub-optimal performance as USB ports only
support the listed maximum power limits.
Note: Outlet performance may be lower in very cold and very hot climates.
When the vehicle is put in Park and the driver opens the door, a notification on the
Clearview Cockpit reminds you to bring your USB-C connected devices with you when
exiting the vehicle. This feature is enabled by default. To disable this feature, go to
Settings > General > Device Charging, and unselect
USB & WIRELESS under Device Left Behind
Notification.
Wireless Charging
Wireless charging has become increasingly popular, providing a convenient and
clutter-free way to charge your mobile device.

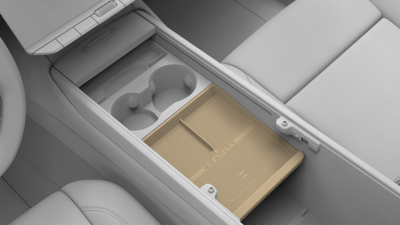

A wireless charging pad is located in the center console storage compartment.
When the vehicle is on, place a compatible device on the charging pad to charge the
device with wireless charging capability.
Note: Vertical placement along the
bottom edge of the charging pad may improve device recognition for charging.
The wireless charging pad can support up to two compatible devices, delivering up to
15W each.
Note: iPhones being charged
on the wireless charging pad are limited to 7.5W.
Other devices may be
similarly limited due to restrictions imposed by the device. For best
results, it may be necessary to remove the case to wirelessly charge your
device. Device cases marketed as Wireless Charging Compatible or
Qi Compatible provide optimal compatibility.
Warning: Remove all objects from the charger before charging your compatible
smartphone. Objects, such as coins, keys, rings, paper clips, or cards, between the
smartphone and charger may become very hot. On the rare occasion that the charging
system does not detect an object, and that object becomes wedged between the
smartphone and charger, remove the phone and allow the object to cool before
removing it from the charger, to prevent burns.
CAUTION: If objects in the
vehicle interior are stored incorrectly, they can slide or be thrown around and hit
vehicle occupants. There is a risk of injury, in the event of sudden braking or
sudden change in direction of the vehicle.
Always secure objects to
prevent the objects in these types of events.
Always make sure the objects
do not protrude from storage spaces.
Close lockable storage spaces
before driving.
Always secure heavy, hard,
pointed, sharp-edged, fragile, or bulky objects in the load compartment.
The operating temperature for the wireless charger is −40 °C (−40 °F) to 85
°C (185 °F).
Note: Wireless charging pad performance
may be lower in very cold and very hot climates.
When the vehicle is put in Park and the driver opens the door, a notification on the
Clearview Cockpit reminds you to bring your wireless charging devices with you when
exiting the vehicle. This feature is enabled by default. To disable this feature, go
to Settings > General > Device Charging, and unselect
USB & WIRELESS under Device Left Behind
Notification.
FCC Notes
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the
receiving antenna.
Increase the separation between
the equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an
experienced radio/TV technician for help.
12-Volt Power Socket
The 12-volt power socket is primarily provided for use with the tire repair kit but can
also be used for other accessories requiring up to 15A or a maximum of 180 watts.
Warning: Close the cover when it is not
in use. If this outlet is mishandled, it may cause an electric shock.
CAUTION: The 12-volt power socket should not be used with a cigarette lighter. Lighters could potentially cause heat damage to the socket.

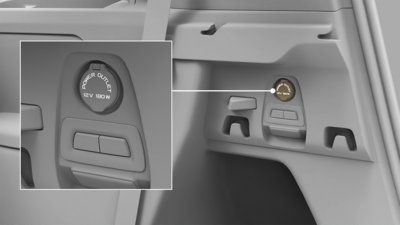

A 12-volt power socket is located in the liftgate on the right-side wall.
CAUTION: Do not plug in a device with
a power rating greater than 15A or 180 watts. This may cause the system to overheat and not
function properly.
Note: Outlet performance may be lower in very cold and very hot climates.
AC Outlets
Each AC outlet in the vehicle can provide 1.8kW of power and be used simultaneously. A
white LED at the bottom of the outlet will illuminate when an accessory is plugged in and power
is available.
Warning: Do not insert fingers or
objects other than compatible accessories into the outlets. If outlets are mishandled, it
may cause an electric shock.

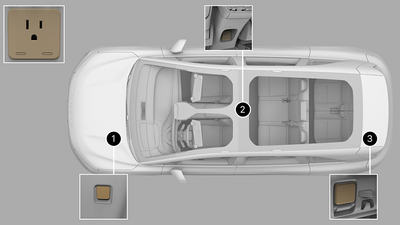

In equipped vehicles, AC outlets can be found in the following areas:
One outlet can be found on the right
side of the frunk.
One outlet can be found on the rear of
the front center console.
One outlet can be found on the left
side of the trunk.
CAUTION: Do not use accessories
that exceed the power rating of the outlets. This may cause the outlets to not work
properly.
AC outlets are set to OFF by default to preserve power. The outlets automatically turn on
when a compatible accessory is plugged in and remain on until the accessory is unplugged.
To continue using the AC outlets after turning the vehicle off, toggle Keep
On under OUTLETS on the Charging screen of the Pilot
Panel. The Keep On feature will be disabled and the outlets will turn off automatically when
the vehicle is next moved out of Park.
Note: The AC outlets and Keep On feature are unavailable when the
vehicle is below 50 miles and when AC charging. AC outlets are usable while DC charging.
Note: Outlet performance may be lower in very cold and very hot climates.
