Exterior Lights Control

Exterior lighting provides illumination at night or in poor visibility conditions. These lights are controlled via either the left lever on the steering column, or the Left Clearview Cockpit.

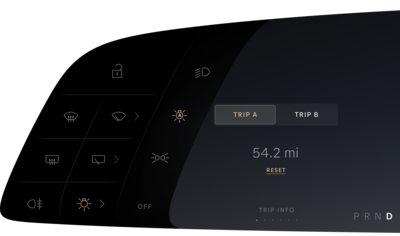

Tap the lights icon to view the options for your exterior lights. From the sub menu, you can switch between Low Beam, Auto, Position Lights, or Off. When you tap the lights icon, if the current selection is Position Light or Off, Auto Lights is automatically selected.

Touch the corresponding icon to operate any of the exterior lights according to your convenience:


	AUTO Lights
	Position Lights
	Low Beam Headlights
	Off Lights

AUTO Lights

The low beam headlights will automatically switch on when the ambient light falls below a pre-defined level. The front and rear position lights are always on.

The headlights will switch off when the ambient light rises above that level.

Note: The lights will switch on whenever the windshield wipers are operating.

Auto Headlamp Leveling allows the headlights to auto adjust with changes in road terrain and load to provide adequate lighting.

Position Lights

The position lights indicator is displayed on the Clearview Cockpit whenever the position lights are on.

Low Beams

The low beam indicator is displayed on the Clearview Cockpit whenever the low beams are on.

Off Lights

Turns off all exterior lights when the vehicle is in Park. Once the vehicle shifts out of Park, the AUTO lights will turn on.

Daytime Running Lights

Note: The functionality and operation of daytime running lights will vary according to market requirements.

In regions that require the vehicle’s lights to be on even during the day, the daytime running lights will automatically turn on when the vehicle is powered, and will turn off if the headlamps or the fog lights are on.

License Plate Lights

The license plate lights illuminate the license plate and are activated when the low beam headlights or position lamps are on.

Light Failure

If the vehicle detects an exterior light that is not working, the light failure indicator will be displayed on the Clearview Cockpit. This will be accompanied by a message explaining which light function has failed. In the case of a failure of a turn indicator only: In addition to the aforementioned message, the frequency of the telltale indicator (on the Center Clearview Cockpit), and audio chime will double to help alert the driver that a lamp is not operating normally.

High Beam Headlights

You can use your high-beam headlights when it's difficult to see and no one is front of you,

Note: The headlight high beams will only operate if the low beams are on, except when used for temporary flashing.

Push the left steering column lever away from you to turn on the high beam headlights. To cancel, pull the lever towards you. High beams will only operate if the low beams are on.

The high beam indicator will display on the Clearview Cockpit when high beams are on.

Headlight High Beam Flash

You can flash the headlight high beams by pulling the lever towards you and releasing it.

Rear Fog Light

The rear fog light provides a bright red light that penetrates fog and heavy rain. This helps make your car more visible to cars following you.

Note: Regulations concerning fog lights usage vary by country.

Note: The rear fog light is considerably brighter than ordinary tail lights and should only be used to help other road users see your vehicle in low-visibility conditions, such as fog or heavy snowfall.

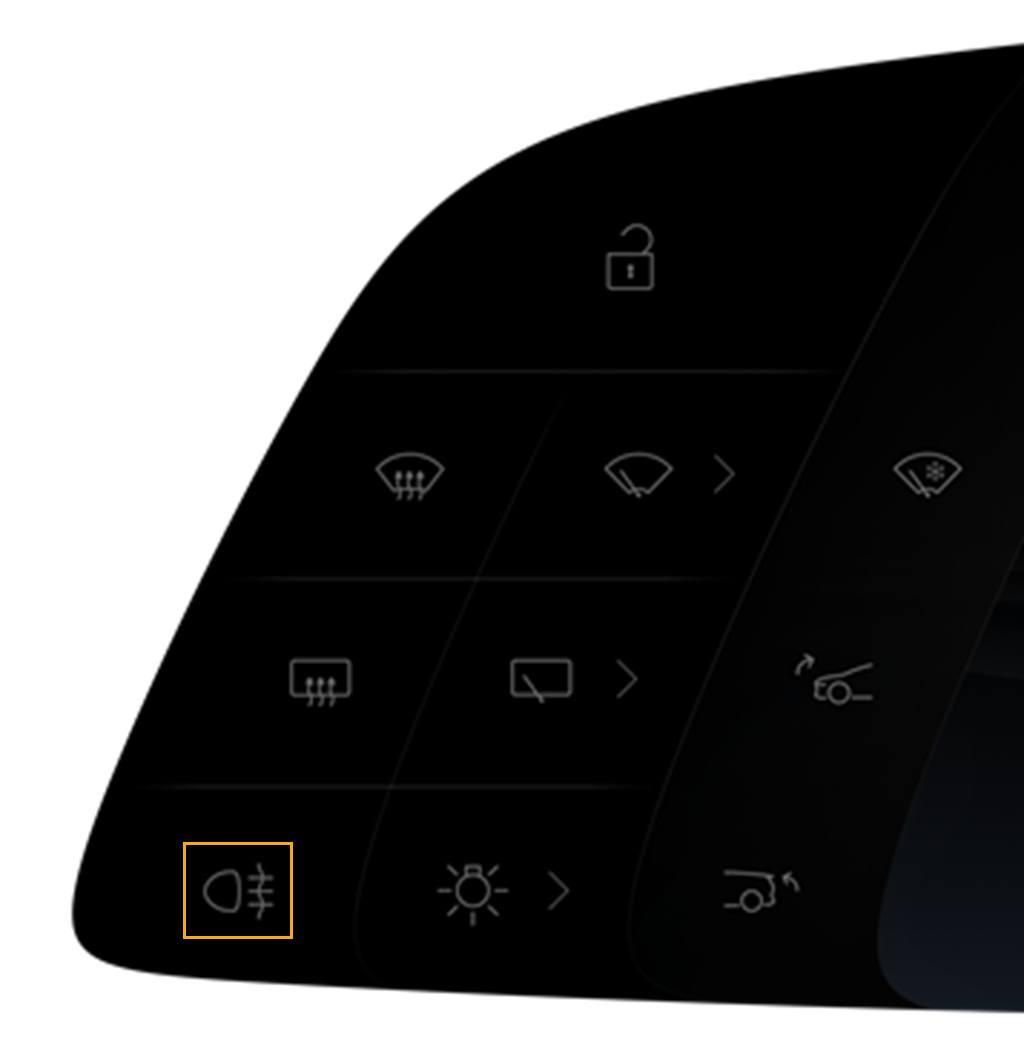

Use the Left Clearview Cockpit to turn the rear fog lamp on or off.

The rear fog light indicator will display on the Clearview Cockpit whenever the rear fog light is on.

Note: The rear fog light is automatically turned off each time the vehicle is powered on, and will need to be manually turned on, if required.

Note: The rear fog lights can be turned on only when the headlights are manually turned on, or in AUTO mode at night. During the day, activation of the AUTO mode will activate the Low Beams.

Turn Signals

The turn signals are activated by moving the left steering column lever down to operate the left turn signals, or up to operate the right turn signals. The turn signals will continue to function until they are automatically canceled via the steering wheel or by lightly pushing the steering column lever in any direction.

Note: Pushing the steering column lever all the way in the opposite direction will switch the turn signals to the opposite direction instead of being canceled.

The corresponding turn signal indicator will display on the Clearview Cockpit when a turn signal is activated. You will also hear a clicking sound when the turn signal is operating.

Bending Lights

The bending lights follow the curvature of the road to keep the path illuminated when turning.

Lane Changes

Momentarily hold the lever up or down against the spring pressure and release it to signal a lane change. The turn signals will flash three times to indicate a lane change.

Hazard Warning Lights

The Hazard Warning Lights will flash to make the vehicle more visible, and will warn other vehicles.

These lights can be used in any state that the vehicle is in, including when the vehicle is in a powered off or locked state.

Note: The hazard warning lights can be operated even when a key fob is not in the vehicle.

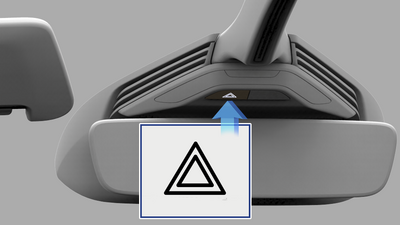

Press the switch located on the overhead console to turn on the hazard warning lights. All turn signals will flash along with the turn signal indicators on the Center Clearview Cockpit.

Press the switch again to turn off the hazard warning lights.

Note: You should only use hazard warning lights in an emergency to warn other road users of a breakdown or a potential danger. Remember to switch them off when the hazardous situation has been resolved.

After a Collision

If you are involved in a collision that causes the airbags to be deployed, the hazard warning lights will automatically switch on.
