Carrying Accessories


Carrying Accessories

Note: Do not attempt to tow a trailer. Trailer towing is not currently supported. Support for towing will be made available in an upcoming software update.

The Lucid Gravity with tow package comes equipped with a 2" detachable hitch receiver that is capable of supporting rear attachments for accessories. An electrical connector comes standard with all tow package equipped vehicles to provide a lighting connection to rear accessories with the vehicle's system.

CAUTION: Do not leave the hitch receiver attached to the vehicle when not in use, remove and store in a dry place to prevent damage to it. The hitch cover should remain on to prevent debris from potentially damaging the hitch housing unit and electrical connector.
Warning: Aftermarket trailer hitches should not be installed on the vehicle. Only vehicles with a Lucid-installed tow bar are rated to tow and carry rear accessories. Installing and Operating the vehicle with an aftermarket trailer hitch will result in unsafe conditions, or cause damage to the vehicle.

Hitch Cover

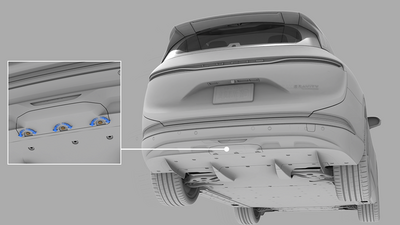

Removing the Hitch Cover:

  1. Loosen the three fasteners on the trailer hitch cover by turning them 90 degrees counterclockwise with a flathead screwdriver, then pull down the fasteners.
    Note: The fasteners are captive to the cover, do not attempt to remove them from the hitch cover.

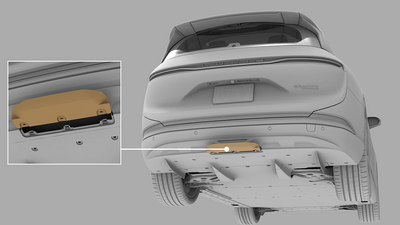

  2. Carefully pull the cover rearwards away from the vehicle to remove it.


Installing the Hitch Cover:

  1. Align the hitch cover tabs to the slots.
  2. Push forward on the hitch cover until it sits flush.
  3. Turn the fasteners 90 degrees clockwise so they lay flush with the hitch cover.

Hitch Receiver

Connecting the Detachable Hitch Receiver:

  1. Remove the hitch cover from the hitch housing.
  2. Make sure that the key is in the locking cylinder turned counterclockwise so the locking cylinder can be turned into the unlocked position. The locking cylinder will not be able to turn away from the locked position without the key in it.

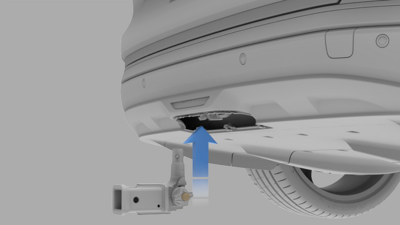

  3. Hold the hitch from the bottom, then align the triangle guides on the side of the hitch with the same cutouts inside of the hitch housing.

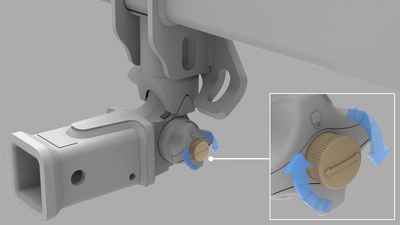

  4. Make sure that the red mark on the locking cylinder aligns with the white dot on the hitch receiver. Plug the hitch receiver into the hitch housing unit until you hear a click sound and the locking cylinder reads that it is in the locked position.
  5. Turn the key clockwise then remove it from the locking cylinder and push down on to the hitch to make sure it does not move or come out.


Disconnecting the Detachable Hitch Receiver:

  1. Insert the key then turn it counterclockwise into the unlocked position.
  2. Take hold of the bottom of the hitch, pull on the locking cylinder, and turn it clockwise until the red mark on the cylinder aligns with the white dot on the hitch receiver. Be sure not to drop the hitch receiver. The hitch should detach from the socket and fall out of the hitch housing unit.
  3. Install the hitch cover, then store the detachable hitch receiver in the case that it came in.

Rear Attachments Capacity

The vehicle's hitch receiver can hold up to 110 lbs (50 kg) of weight including the rear attachment itself.

Warning: Overloading the hitch receiver and exceeding the maximum weight allowed can damage the vehicle and create hazardous conditions.
