Sun Visors

To use a sun visor, fold it down from its stowed position. Sun visors can also pivot towards the side window by releasing it from the retaining clip.

Note: Make sure the sun visor is secured by the retaining clip when returning it to its stowed position.

Both sun visors have a covered mirror. Raise the cover to use the mirror and an integrated light will automatically turn on. The light will turn off when the cover is closed.

Sun Visor Battery Replacement

Warning: Each sun visor contains three coin/button type batteries. These batteries contain toxic and corrosive substances. Batteries are a chemical burn hazard and should never be ingested. If a battery is swallowed, it can cause serious internal burns and may even lead to death.

Keep new and used batteries out of the reach of children.
If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

The sun visors use batteries to power the mirror lights due to the unique design of the vehicle.

Note: The batteries have an estimated life of approximately two years, based on typical usage.

To replace the batteries:

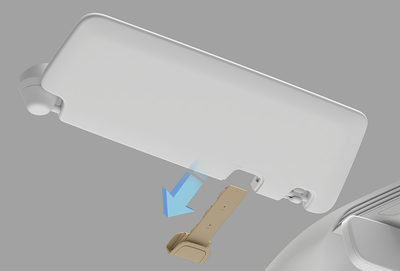

With the sun visor in its stowed position, slide the battery holder towards the front of the vehicle.

Remove the old batteries.

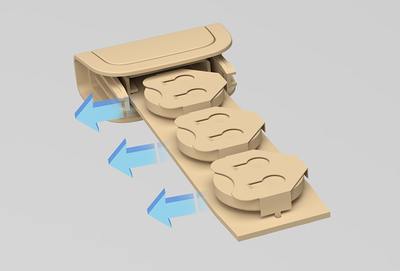

Install the new batteries and avoid touching the flat surfaces of the batteries, if possible, (as finger marks can reduce battery life). Wipe the batteries clean before installation. Fit the battery with the + side facing upwards and reinstall the battery holder in the sun visor.

Note: Always replace all three batteries with new 2450HT batteries.

For important safety information and handling instructions related to the battery used in your sun visor, refer to the Battery Safety Guidelines.

Glove Box

The glove box is opened using the Pilot Panel by tapping the Glove Box button in Quick Controls. To close it, push the glove box cover until it latches.

Front Armrest and Center Console Storage Compartment

Pull the release latch and lift up the armrest to access the storage compartment.

Warning: Do not operate the vehicle with the storage compartment lid open, as this could result in injury in a collision.

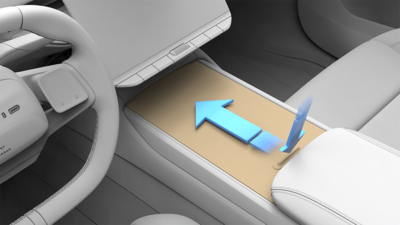

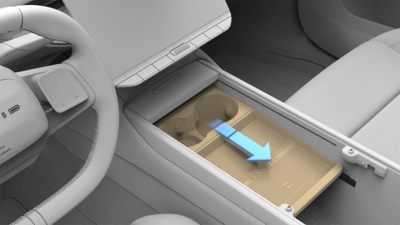

Slide the glass cover forward to access the front center console storage tray.

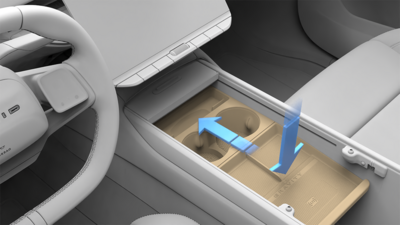

Access the area under the tray by pressing down on the tray to unlock it, and then sliding the tray forward.

Return the tray to the initial position by pulling it back until it locks into place with an audible click.

Rear Armrests and Storage Compartments

Second Row Armrest and Storage Compartment

Warning: The second row armrest must not be used as a seat or a booster cushion for small children. Children must be seated in a seat suitable for their size and weight to reduce the risk of injury in a crash.

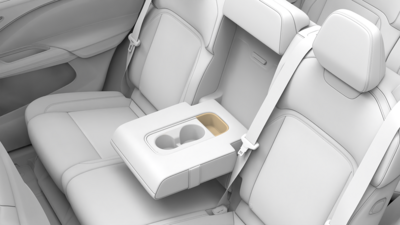

Use the latch to pull down the second row center armrest to access the storage compartment.

Close the lid and push the armrest up to close it.

Third Row Armrests and Storage Compartments

The third row has stationary armrests on the left and right sides of the vehicle. Storage compartments are located above the armrests.

Cup Holders

Note: The cup holders have a rubber insert that can be removed to allow them to be cleaned if there is a spillage.

Cup holders are located in the following locations:

In the front center console.

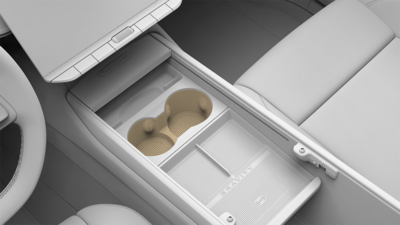

Slide the glass cover forward to access the cup holders in the storage tray.
In the second row armrest.

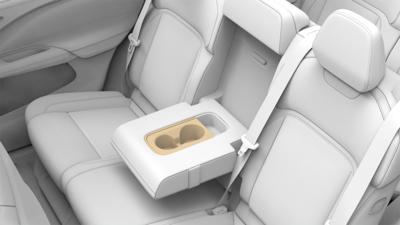

Fold down the second row armrest to access the cup holders.

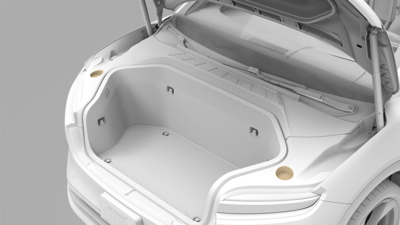

In the frunk.
CAUTION: The cup holders in the frunk are only to be used when the vehicle is in Park and the hood is open.

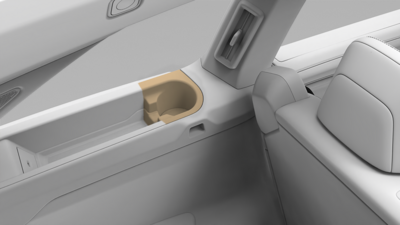

In the third row above the armrests.

Bottle Holders

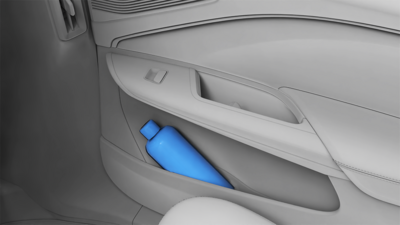

Your Lucid Gravity has a total of four closed container holders, one located in each of the vehicle's doors.
