Drive Modes


Launch Mode


Limited Power Mode


Drive Modes

Your Lucid Gravity can be set to your preferred driving and regenerative braking modes. You can opt for more comfortable and smoother vehicle controls in order to increase energy efficiency.

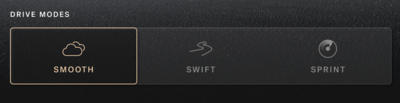

Use the Pilot Panel to select a drive mode by touching .



SMOOTH

SMOOTH mode configures the vehicle for comfortable, effortless, highly-efficient driving. SMOOTH mode allows the vehicle to achieve maximum range while optimizing steering, braking, and suspension systems for comfort and a smooth powertrain response. The default height is standard, ensuring an optimal balance between performance and comfort.

SMOOTH mode is the vehicle's default mode. Your vehicle will always be set to SMOOTH mode when it is first powered up.

SWIFT

SWIFT mode is designed for spirited driving and gives an excellent combination of sportiness and comfort. Steering, braking, and suspension systems are optimized for a dynamic driving experience when activated. The powertrain responsiveness and torque will be increased. The default height is standard, allowing for dynamic driving while maintaining stability. The drive mode will return to SMOOTH upon powering the vehicle off and on again.

SPRINT

SPRINT mode is designed for short duration bursts of intense performance and enables the maximum power and torque of your vehicle. Steering, braking, and suspension systems are optimized for stability and control. The default height is low, enhancing aerodynamics for high-speed driving. The drive mode will return to SMOOTH upon powering the vehicle on and off again.

Note: This mode cannot be selected if the vehicle is using the guest profile. Please log in to enable this mode.
Note: Switching between drive modes may adjust the vehicle's ride height to the default height for the new mode. SMOOTH and SWIFT default to standard height, while SPRINT defaults to low.

Regenerative Braking

To adjust your regenerative brake settings, select from the following options:
  • High
  • Standard

For more information, see Regenerative Braking.

Launch Mode

Launch mode allows you to accelerate from a standstill as quickly as possible.

Launch mode is available only when the vehicle is in SPRINT mode. Launch mode maximizes the acceleration of the vehicle from a standstill.

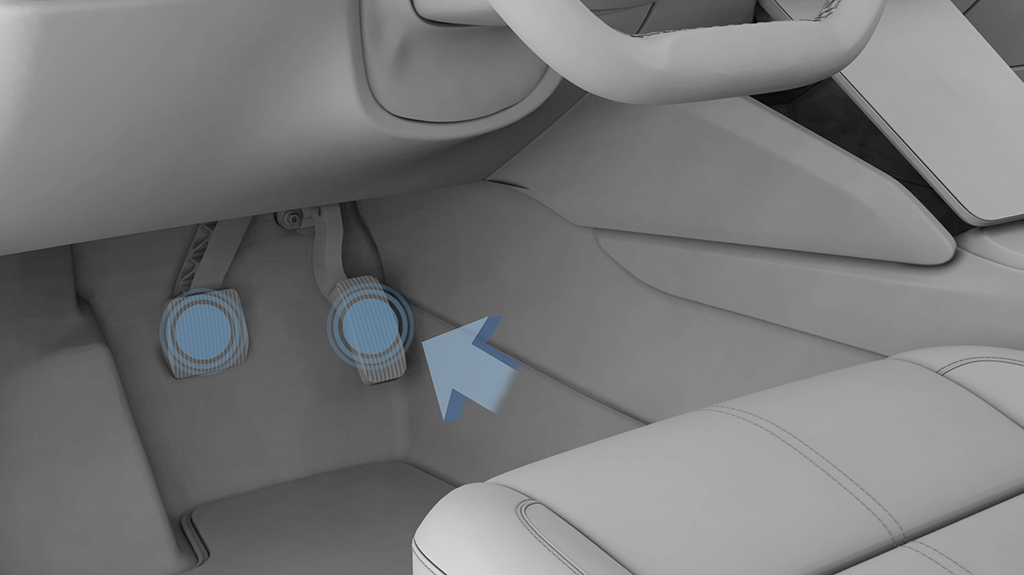

To enter Launch mode:
  1. Vehicle ride height must be set to LOW
  2. First fully press the brake pedal.
  3. Then fully press the accelerator while still holding the brake pedal.
  4. To launch, release the brake while still holding the accelerator.


Launch mode pre-applies torque to the motors, ensuring they are ready to deliver maximum power when the vehicle accelerates.

To cancel Launch mode, release the accelerator while still holding the brake pedal.

Limited Power Mode

Limited Power Mode automatically activates to protect the powertrain if a fault is detected by the vehicle’s drive controller. The vehicle power is reduced and speed and performance are limited, when activated.

CAUTION: Lucid recommends you travel in the lane of slower moving traffic and be prepared to stop, when driving in Limited Power Mode.

An indicator will be displayed on the Clearview Cockpit, when Limited Power Mode is active.

This mode allows you to continue driving with limited acceleration.

CAUTION: Limited Power Mode should NOT be used for the sustained operation of the vehicle.
