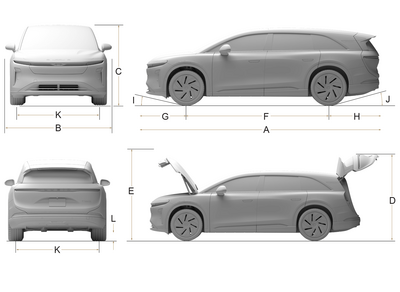

Exterior Dimensions
| Identifier | Description | Dimensions |
|---|---|---|
| A | Overall Length | 198 in (5035 mm) |
| B | Overall Width - Mirrors Extended | 87 in (2215 mm) |
| B | Overall Width - Mirrors Folded | 79in (2004mm) |
| C | Overall Height | 65 in (1658 mm) |
| D | Overall Height - Liftgate open | 82 in (2074 mm) |
| E | Overall Height - Hood Open | 80 in (2040 mm) |
| F | Wheelbase | 119 in (3035 mm) |
| G | Front Overhang | 35 in (894 mm) |
| H | Rear Overhang | 44 in (1106 mm) |
| I | Approach Angle | 15.8° |
| J | Departure Angle | 18.4° |
| K | Track - Front Track - Rear | 67 in (1707 mm) 67 in ( 1704 mm) |
| L | Ground Clearance - Between axles | 7.0 in (178 mm) |
| L | Ground Clearance - Under front axle | 5.9 in (150 mm) |
