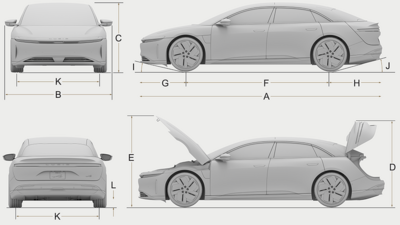

Exterior Dimensions
| Identifier | Description | Dimensions |
|---|---|---|
| A | Overall Length | 196 in (4975 mm) |
| B | Overall Width - Mirrors Extended | 86 in (2196 mm) |
| B | Overall Width - Mirrors Folded | 77in (1936mm) |
| C | Overall Height | 56 in ( 1417mm) |
| D | Overall Height - Deck Lid Open | 69 in (1747 mm) |
| E | Overall Height - Hood Open | 73 in (1842 mm) |
| F | Wheelbase | 117 in (2960 mm) |
| G | Front Overhang | 37 in (941 mm) |
| H | Rear Overhang | 42.3 in (1075 mm) |
| I | Approach Angle | 11.6° |
| J | Departure Angle | 14.2° |
|
K |
Track - Front Track - Rear |
66 in (1669 mm) 66 in (1666 mm) |
| L | Minimum Ground Clearance between axles | 5.6 in (142 mm) |
| L | Minimum Ground Clearance under front axle | 5.6 in (142 mm) |
| L | Minimum Ground Clearance under rear axle | 6.6 in (168 mm) |
