Lane Departure Protection

Warning: Lane Departure Protection is for guidance purposes only and is not intended to replace your own direct visual checks. Never depend on Lane Departure Protection to inform you of unintentionally driving outside of the boundaries of the driving lane or road edge. Always stay alert, pay attention to the driving lane and always be aware of other road users. Failure to do so can result in serious injury or death.
Warning: Lane Departure Protection is designed to detect lane markings and certain road edges. It is your responsibility to drive attentively and stay within the boundaries of the driving lane.
Warning: Any changes to the vehicle's suspension or wheel height may result in degraded feature performance or no activation.
Warning: Excessive crosswinds, large road crown, improper tire pressures, or vehicle loading conditions can affect the feature's performance.

When enabled, Lane Departure Protection helps the driver to prevent the vehicle from unintentionally straying out of a detected lane by providing visual and haptic alerts (if enabled).

Lane Departure Protection is available at vehicle speeds between 30‑124 mph (50‑200 km/h) for detecting lanes, and between 40‑85 mph (60‑140 km/h) for detecting road edges.

Note: Lane Departure Protection is temporarily overridden when a turn signal is activated (see Turn Signals). Once you have steered into another lane and the turn signal automatically deactivates, Lane Departure Protection will resume if lane lines are detected.


When the system detects an unintentional drift toward the lane or road boundaries:

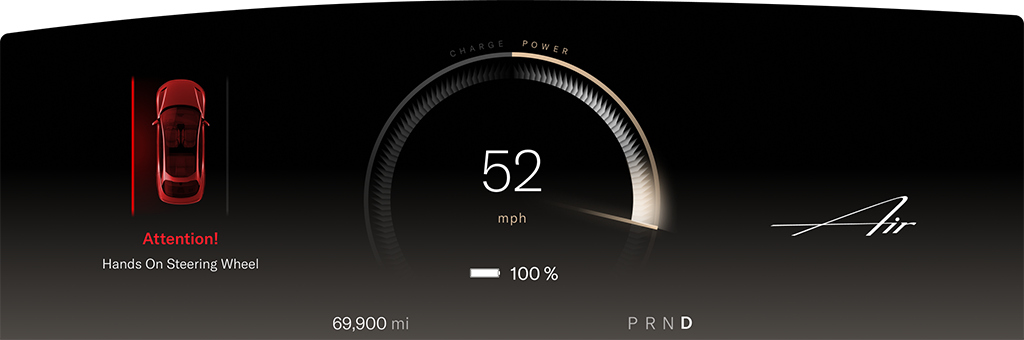

  • An alert displays on the Cockpit Panel, highlighting the side the vehicle is drifting towards.
  • If enabled, the steering wheel will provide a haptic vibration.
  • Steering correction is applied to bring the vehicle back into the lane or road.


If two or more steering corrections are detected within 180 seconds without the driver’s hands on the steering wheel, an audible alert will sound on the second correction. For any consecutive steering corrections, audible alerts will be longer in duration.

Lane Departure Protection alerts will be canceled immediately if any of the following actions happen:

  • A turn signal is activated
  • Intentional steering
  • Intentional acceleration
  • Intentional braking

Lane Departure Protection settings

To configure Lane Departure Protection, from the Pilot Panel touch >  DreamDrive, then enable or disable Lane Departure Protection. Settings save to the current User Profile.

When Lane Departure Protection is disabled or unavailable, an indicator will display on the Cockpit Panel.

When enabled, press INTERVENTION ONLY (default) or WARNING AND INTERVENTION if you wish to receive haptic vibrations of the steering wheel when a steering correction is recommended.

Warnings cancel automatically when the risk of an unintentional lane departure has been reduced (such as when you steer the vehicle back to the current lane).

Note: When disabled, Lane Departure Protection settings will save to the current User Profile. Lane Departure Protection is re-activated when Highway Assist is activated. See Highway Assist. When Highway Assist is activated, it is always set to 'Warning and Intervention'.
