Table of Content

Steering


Brakes


Wheel and Tire Specifications


Tire Pressures


Front Suspension


Rear Suspension


Motors


Transmission


12V Batteries


High-Voltage Battery


Steering

Type Rack and Pinion with Electronic Power Steering and Speed Sensitive Assist
Number of Turns Lock to Lock 2.3 Turns
Turning Circle (Curb to Curb) 39 ft (11.9 m)

Rear Wheel Steering

Type Dual Independent Electronically-Actuated Rear Wheel Steering
Max Rear Wheel Angle 2.9 degrees

Brakes

Type4-Wheel Anti-lock Braking System (ABS) with Electronic Brake Force Distribution, Integrated Electronic Stability Control and Electronic Accelerator Pedal-actuated Regenerative Braking System
Calipers Front: Six-piston Fixed

Rear: Four-piston Floating
Rotors Ventilated Front and Rear Rotors

Front Diameter: 15.35 in (390 mm)

Rear Diameter: 15.27 in (388 mm)
Front Rotor Thickness New: 1.5 in (38 mm)

Service Limit: 1.4 in (36 mm)
Rear Rotor ThicknessNew: 1.18 in (30 mm)

Service Limit: 1.10 in (28 mm)

Front Brake Pad ThicknessNew: 0.37 in (9.34 mm)

Service Limit: 0.08 in (2 mm)

Rear Brake Pad ThicknessNew: 0.26 in (6.67 mm)

Service Limit: 0.08 in (2 mm)

Parking BrakeSeparate Caliper, Electronically Actuated Motor

Wheel and Tire Specifications

Lug nut Specifications

Note: For details on where to lift your vehicle, see Lifting the Vehicle.
  • Lug nut torque: 190 Nm
  • Lug nut socket size: 21 mm

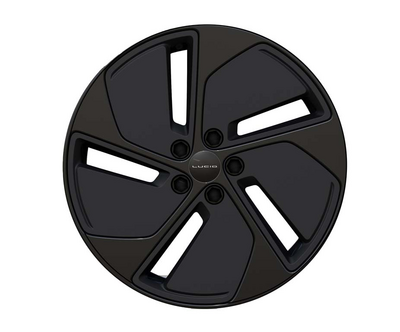

Lucid Gravity Voyager Wheels

Wheels

  • Front Wheels: 20 x 8.5"
  • Rear Wheels: 21 x 9.5"

Tires

  • Front Tires: 265/50R20 Hankook Ion Evo AS SUV, Speed and load: 111Y XL
  • Rear Tires: 285/45R21 Hankook Ion Evo AS SUV, Speed and load: 113Y XL

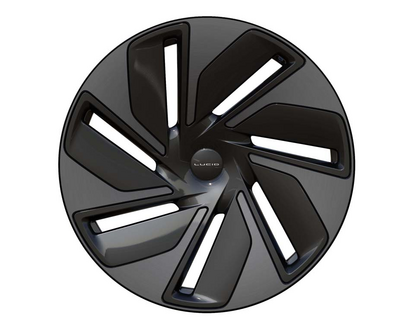

Lucid Gravity Orion Wheels

Wheels

  • Front Wheels: 21 x 9.0"
  • Rear Wheels: 22 x 10.0"

Tires

  • Front Tires: 265/45ZR21 Michelin Primacy Tour A/S, Speed and load: 108Y XL
  • Rear Tires: 285/40ZR22 Michelin Primacy Tour A/S, Speed and load: 110Y XL

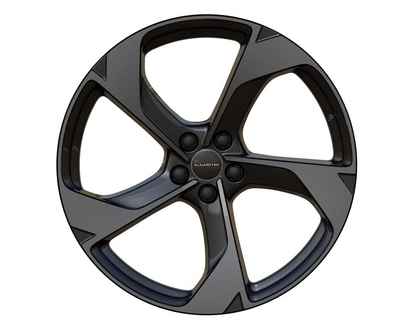

Lucid Gravity Aether Wheels

Wheels

  • Front Wheels: 22 x 9.5"
  • Rear Wheels: 23 x 10.0"

Tires

  • Front Tires: HL265/40R22 Pirelli P Zero Summer, Speed and load: 109Y HLC
  • Rear Tires: HL285/35R23 Pirelli P Zero Summer, Speed and load: 110Y HLC
Related reference

Tire Pressures

Recommended COLD Inflation Pressures

Tire pressures may vary, depending on the type of tires fitted to your vehicle. Refer to the tire pressures printed on the Tire and Loading Information label. This label is located on the left door pillar and is visible when the front door is open. See Maintaining Tire Pressures.

Front Suspension

TypeIndependent 5-Link with Stabilizer Bar, adaptive dampers, and air springs.

Alignment

 CAMBER CASTER (for Inspection, not Adjustable) TOE
Optimum -0.57° 6.5° 0.146°
Tolerance +0.25°

- 0.25°

 +0.5°

- 0.5°

 +0.05°

- 0.05°
Note: The specificaions listed are for a vehicle at curb weight.

Rear Suspension

Type Independent 5-Link with Stabilizer Bar, adaptive dampers, and air springs.

Alignment

 CAMBER (for Inspection, not Adjustable) TOE
Optimum -1.27° 0.110°

Tolerance

 +0.5°

- 0.5°

 +0.05°

- 0.05°
Note: The specifications listed are for a vehicle at curb weight.

Motors

  • Front: Permanent magnet AC motor.
  • Rear: Permanent magnet AC motor.

Transmission

Front Drive Ratio7.06 Single Speed
Rear Drive Ratio 8.73 Single Speed (Grand Touring)

7.06 Single Speed (other)

12V Batteries

TypeDeep Cycle
Quantity2
Rating18 Ah
Voltage and Polarity12V Negative (-) Ground

High-Voltage Battery

TypeLithium Ion (Li-Ion)
CoolingLiquid-Cooled
