Lifting the Vehicle
Warning: Never raise the vehicle when the
charging cable is connected, even if charging is not in progress. Always disconnect
the charging cable before raising the vehicle. See Disconnecting the Charging Cable.
Warning: Do not work on an incorrectly supported vehicle. Doing so can cause serious damage, bodily injury, or death.

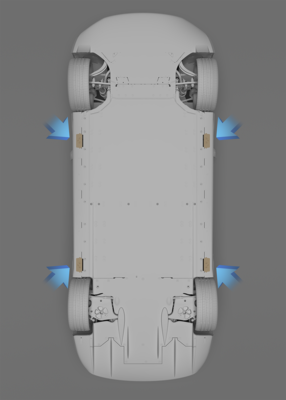

The lifting points for the vehicle are located at the positions shown below.
Ensure that any non-Lucid repair facility servicing your vehicle is aware of these lifting points when raising your vehicle on a lift.
CAUTION: These are the only approved lifting points for your vehicle. Lifting the vehicle at any other points may cause irreparable damage to the vehicle.
Before Lifting the Vehicle
Before lifting the vehicle always follow these steps to prepare the vehicle for service:
- Set the vehicle's gear to Park.
- Open Vehicle Settings then under Maintenance select Tires & Wheels.
- Toggle Prepare for Vehicle Jack to on.
The Prepare for Vehicle Jack Mode will disable the auto-leveling features on the vehicle so it can be safely lifted using a jack.
Warning: Attempting to lift the vehicle before turning on Prepare for Vehicle Jack can
cause serious damage and injury.
Steps for Lifting the Vehicle
- Position the vehicle centrally between the lift posts.
- Position the lift arm pads under the designated body lifting points at the locations shown.CAUTION: DO NOT position the lift arm pads under the vehicle battery or side rails.
- Adjust the height and position of the lift arm pads to ensure that they are correctly located.
- With assistance, raise the lift to the desired height, ensuring the lift arm pads remain in their correct positions.
- Engage any lift safety locks. Follow the lift manufacturer's instructions.
