Your Lucid Air may use 21" summer tires and 19" winter tires. Several vehicle systems rely on knowing the wheel size, so a system update is required whenever swapping wheels of different sizes.

Wheel Swap Preferred Method: Lucid Service Center

It is best to schedule your wheel swap with a Lucid Service Center. They will complete the entire procedure for you, including making the physical swap, resetting the TPMS, and updating the vehicle software to recognize the new wheel sizes.

Swapping the Wheels Yourself

Depending on where your seasonal tires are stored, you may find it more convenient to perform the swap yourself. After you swap the wheels, you must update the vehicle software. You may do this yourself by following the prompts on the Pilot Panel or schedule a visit with Lucid Service Center to complete the procedure.

Whenever swapping a different tire size, the tire size information must be updated. To do this:

1. Go to Settings > Vehicle .
2. Open Tires page.
3. Choose Select Installed Tires page.
4. Enter your Profile PIN.
5. Choose Select Front Tires or Select Rear Tires.
6. Select the new tire size.

Tire Swapping FAQs

1. After swapping tires, the tire pressure information is not displayed correctly.

   The vehicle must be driven about 10 minutes for the TPMS information to get upgraded.

2. The newly installed tire size does not show up in the list of available tire sizes.

   The new tire size is not approved by Lucid. Only Lucid-approved tire sizes should be installed. Contact Customer Care for more information.

3. An error occurs when attempting to update the tire size.

   Wait a few minutes, then try again.

Removing One-Piece Wheel Trim Covers

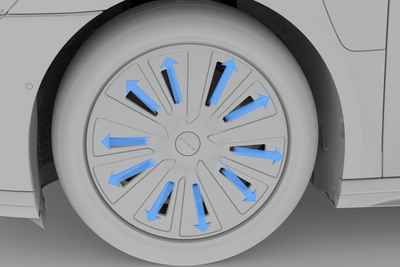

1. Locate the valve stem on the wheel trim cover spoke, which is typically located on the outer edge of the wheel, near the tire.



2. Starting with one spoke, pull on the outer edge of the spoke to release. Repeat for each spoke until all of them are released.
   CAUTION: Too much force might damage the wheel trim cover spoke. Pull gently with force.
3. Once all the spokes are released, remove the wheel trim cover.



The removed wheel inserts can be stored away for later reinstallation, if desired. Clean the removed parts prior to storage for ease of handling when re-installing.

Removing Multi-Piece Wheel Trim Covers

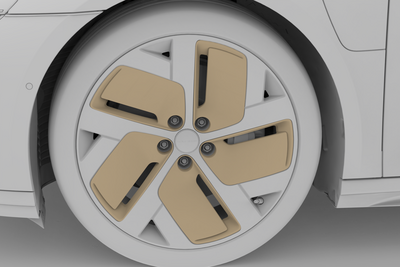

Lucid Air Dream Edition vehicles have a 5-piece wheel insert that look like this:

To remove Dream Edition wheel inserts:

1. Grip the insert by inserting you fingers into the gap in the insert.
2. Firmly pull until the insert releases from the wheel.
3. Repeat for ther other four inserts on each wheel.

The removed wheel inserts can be stored away for later reinstallation, if desired. Clean the removed parts prior to storage for ease of handling when re-installing.

Installing One-Piece Wheel Trim Covers

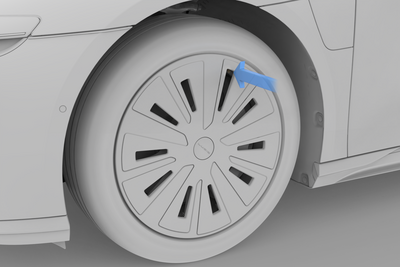

1. Install the center section of the cover first until you hear or feel the wheel cover clip into place.
   Note: Make sure to align the valve stem hole in the correct location.
2. Secure wheel insert spokes to the wheel by ensuring each one clips into place.
3. To prevent wheel inserts from falling off while driving, check that all spokes are fully secured before driving.

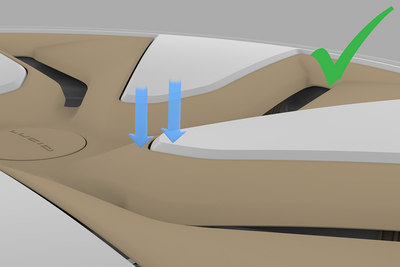

CAUTION: When re-installing the 5-spoke, 21" Aerosport wheel insert, check the final assembly to ensure the insert (left arrow) is below the surface of the surrounding wheel (right arrow).

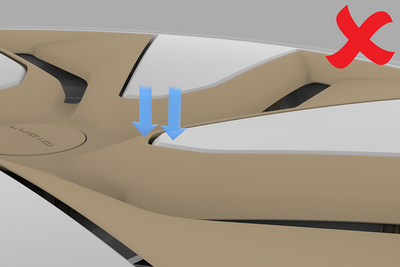

If the Insert is at or above the surface of the surrounding wheel (shown below) the insert is NOT properly seated.

Seating the wheel insert correctly may require substantial force.

Installing Multi-Piece Wheel Trim Covers

Lucid Air Dream Edition uses a special 5-piece wheel insert, see Removing Multi-Piece Wheel Trim Covers.

To install Dream Edition wheel inserts:

1. Align the insert to the corresponding opening in the wheel.
   Note: Any insert can be positioned in any opening.
2. Press firmly until the insert snaps into place.
3. Repeat for all other inserts on each wheel.
